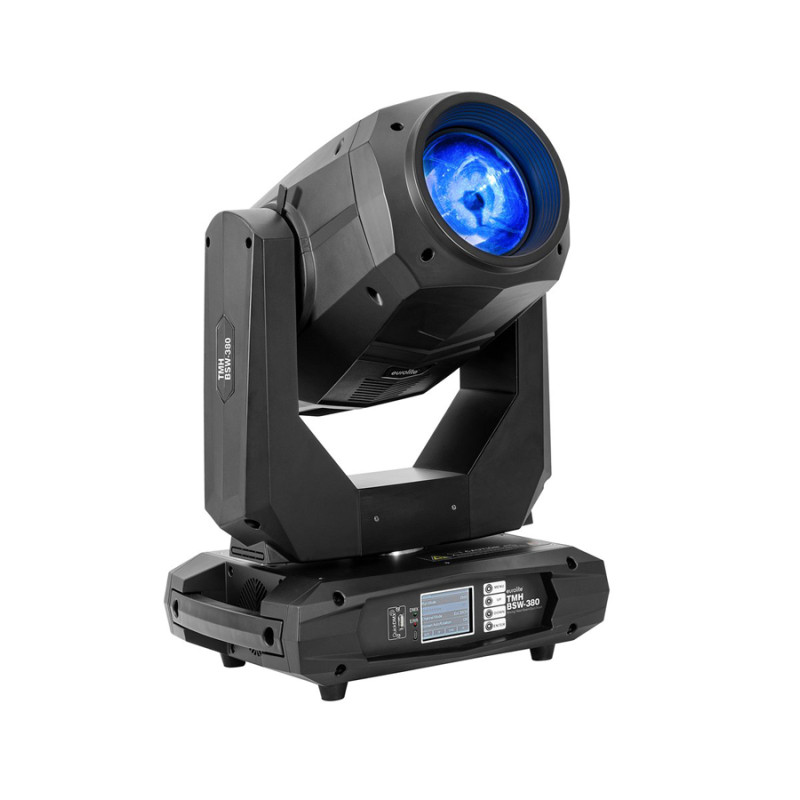

Also in terms of equipment, this all-around moving head has been designed with the utmost care. For example, 3 gobo wheels have been installed. The first gobo wheel offers 11 static gobos, the second 7 rotating gobos, and the third 4 static gobos and an area that enables animations. The latter creates movement in the projection, which alone, but also in combination with the other gobos, provides for eye-catching effects. For example, in combination with the textured glass rotating gobo and a prism, a sensational water effect can be generated. But also a kind of fire effect and many other moving images can be realized. The TMH BSW-380 has 2 rotating prisms. The first prism splits the image into 8 images, the second into 16. In addition, the moving head offers a motorized zoom that ranges from 4° to 35°.



In beam mode, it achieves a hard, concentrated beam with a deliberate hotspot. For further shaping of the light beam, the static gobo wheel is available, for dynamics one can use the rotating prisms. As soon as the second or third gobo wheel is used, the spotlight automatically switches to spot mode. In this mode, the images are then absolutely even and clean, ideal for projections. All three gobo wheels can be combined here. The motorized focus ensures the necessary sharpness in all areas.



Beam/spot/wash moving-head with 371 W discharge lamp, color wheel, gobo wheels, prisms, frost, focus and zoom





Package contents
